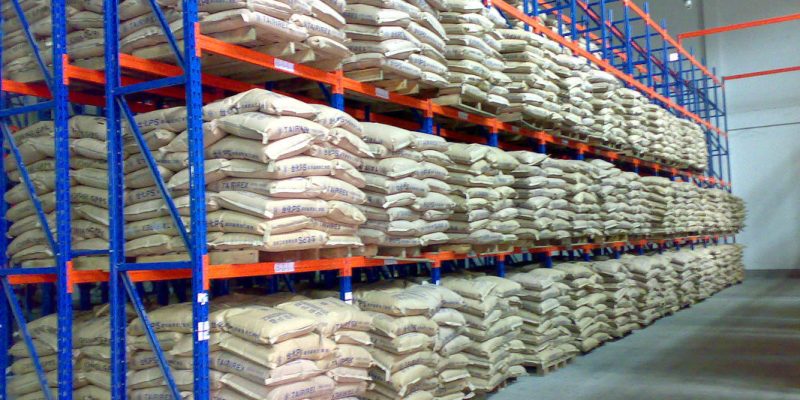

Heavy-Duty Warehouse Racking Systems: Design and Load Requirements

The heavy duty warehouse racking system emerged from industrial necessity, born in the decades following World War II when manufacturing output surged and warehouses found themselves overwhelmed by the sheer weight and volume of goods moving through global supply chains. What began as reinforced steel frameworks in automotive plants and steel mills has evolved into precision-engineered structures capable of supporting loads that would have seemed impossible to earlier generations of warehouse operators. These systems now form the backbone of industries dealing with the heaviest, most demanding storage requirements, from building materials to industrial machinery.

The Engineering Foundation

At its core, a heavy duty racking system differs from standard warehouse racking not merely in scale but in fundamental design philosophy. Engineers calculate load-bearing capacity with extreme precision, accounting for multiple stress factors that lighter systems can safely ignore. The steel profiles themselves tell the story. Where standard selective racking might employ uprights with 1.8 to 2.0 millimetre thickness, heavy duty configurations utilise profiles of 2.5 to 3.0 millimetres or greater. Beam designs incorporate reinforced cross-sections, often with double or triple corrugations to resist deflection under extreme loads.

The connections between components receive particular scrutiny. Safety pins, locking clips, and beam-to-upright connections must withstand not only static vertical loads but also the dynamic forces generated when forklifts place or remove pallets weighing several tonnes. A structural engineer working on warehouse projects in Singapore’s industrial corridor explains the challenge: “We design for the worst-case scenario. A forklift operator dropping a 3,000 kilogram load generates impact forces potentially exceeding 150% of the static weight. The racking must absorb these shocks repeatedly without permanent deformation.”

Load Capacity Specifications

Understanding heavy duty warehouse racking system requires grasping the distinction between uniform distributed loads and concentrated point loads. A beam rated for 3,000 kilograms assumes this weight distributes evenly across its length. However, real-world pallet placement creates concentrated loads at specific points. Engineers must account for these load patterns when specifying beam depths, upright gauges, and frame spacing.

Typical heavy duty specifications include:

• Beam load capacities ranging from 2,500 to 5,000 kilograms per level
• Upright frame capacities exceeding 20,000 kilograms per upright pair
• Floor loading considerations of 5 to 8 tonnes per square metre
• Seismic bracing requirements in earthquake-prone regions
• Impact protection at floor level rated for forklift collisions

The mathematics of structural loading follows principles established in civil engineering. A fully loaded bay concentrates tremendous weight onto the footplates, which then transfer these forces to the concrete floor below. In Singapore’s industrial facilities, where multi-storey warehouses increasingly common, understanding these load paths becomes critical. One structural failure investigation revealed that inadequate floor specification, not racking design, caused a partial collapse that injured three workers and destroyed significant inventory.

Material Selection and Construction Standards

The quality of steel used in heavy duty storage racking directly determines long-term performance and safety. Most systems employ cold-formed steel profiles manufactured to specific strength grades, typically ranging from 350 to 550 megapascals yield strength. The cold-forming process itself introduces beneficial characteristics, work-hardening the material and creating precise dimensional tolerances.

Surface treatment also matters considerably. Powder coating provides corrosion resistance whilst maintaining the steel’s structural properties. In Singapore’s humid tropical climate, inadequate coating can lead to rust formation within months, progressively weakening load-bearing components. As one warehouse safety inspector noted, “I have witnessed uprights corroded to 80% of their original thickness after just five years of poor maintenance in a poorly ventilated facility. The rated capacity effectively decreased proportionally, creating hidden danger.”

Installation and Configuration Considerations

Proper installation of heavy duty racking infrastructure demands expertise beyond standard warehouse setup. The floor preparation alone requires careful attention. Concrete flatness specifications for heavy duty systems exceed those for lighter configurations, typically requiring surface variations below 3 millimetres over a 3-metre span. Uneven floors cause point loading on footplates, potentially exceeding design limits and creating instability.

Anchoring methods vary depending on floor composition and loading requirements. Chemical anchors, expansion bolts, and cast-in plates each serve specific applications. The installation team must:

• Verify floor load-bearing capacity through structural assessment
• Ensure proper vertical alignment using laser levelling equipment
• Install adequate floor anchors at specified spacing
• Provide impact protection at vulnerable points
• Maintain precise beam height increments for consistent loading

Safety Protocols and Maintenance Requirements

Operating a heavy duty warehouse storage system safely requires rigorous protocols and regular inspections. The Singapore Standard SS 513 provides guidance on racking inspection frequencies, recommending weekly visual checks by warehouse personnel and comprehensive annual inspections by qualified engineers. These assessments examine upright verticality, beam connections, floor anchor integrity, and signs of impact damage or overloading.

Load capacity signage must remain clearly visible at every bay, stating maximum permissible loads per level and per bay. Workers require training in proper loading procedures, including even weight distribution and avoiding off-centre placement that creates lateral forces the system did not anticipate.

“The most dangerous situation we encounter,” observes a warehouse safety consultant, “is not dramatic overloading but gradual capacity creep. A facility specified for 2,000 kilogram pallets starts storing 2,200 kilogram loads. Over months, this 10% excess undermines the safety factor built into the original design.”

The evolution of industrial storage continues, driven by ever-increasing demands for efficiency and capacity. Yet the fundamental principles governing heavy duty warehouse racking system design remain grounded in engineering physics, material science, and hard-learned safety lessons from decades of warehouse operations worldwide.
